Learn

Drawing shapes

Gama is an imediate mode library, what does that mean? simply that you draw the shapes directly, and you don't need to create shape objects or shape structs.

        #include <gama.h>

int main() {
  gm_init(500, 500, "Drawing shapes");

  do {
    gm_draw_rectangle(0, 0, 1, 1, GM_BLUE);
  }
}



you use gm_draw functions to draw to the canvas, when you call a draw function, it may not automatically draw to the screen because the drawing api may not be ready to draw yet, in that case it will add your draw call to a list of draw calls and call them only when the window is ready to be drawed on.

# The coordinate system

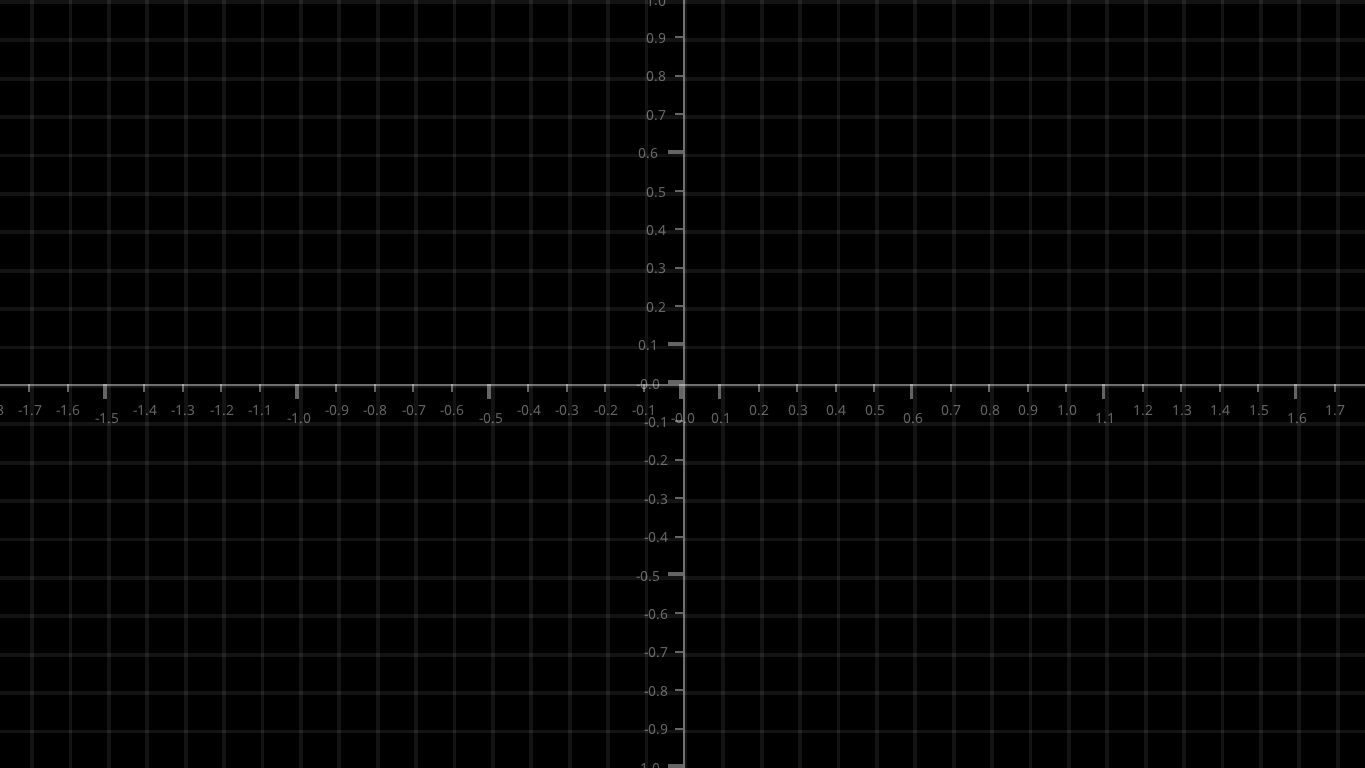

To draw shapes you need obviously to indicate gama where to draw them, using specific coordinates, when you draw on gama you use a graph paper like coordinates where the x and y axae range from -1 to 1, but the x or y ranges may exceed that if your window is not completely square causing some parts to be hidden.

Thus a rectangle of width 2 occupies the whole square window.

# Reference

You can find other draw functions in the draw.h reference
